Pool Permit Site Plans: Setbacks, Equipment Pads, and Barrier Layouts

Installing a swimming pool is one of the most rewarding home improvement projects, but it also comes with important planning and permit requirements. Before excavation begins, most cities and counties require homeowners to submit a pool permit site plan as part of the permit application. This drawing helps local officials evaluate whether the proposed pool complies with zoning regulations, safety standards, and municipal building codes.

Unlike smaller residential improvements, swimming pools affect several aspects of a property’s layout. Reviewers must verify that the pool is positioned a safe distance from property lines, that equipment is installed in an appropriate location, and that the required safety barriers protect against unauthorized access. An incomplete or inaccurate site plan can lead to permit revisions, delayed approvals, and additional project costs.

Understanding what information belongs on a pool permit site plan before you submit your application can save valuable time and help your project move through the review process more efficiently.

What Is a Pool Permit Site Plan?

A pool permit site plan is a scaled drawing that illustrates your property’s existing layout along with the proposed swimming pool and related improvements. It serves as one of the primary documents reviewed by your local building department during the permit approval process.

Unlike a simple sketch, a professionally prepared site plan is accurately scaled, clearly labeled, and organized according to municipal permit requirements helping the building officials review the proposed project more efficiently and determine whether it complies with local regulations before issuing a permit.

A typical pool permit site plan identifies the property boundaries, existing home, proposed pool location, pool dimensions, equipment pad location, pool fencing or barriers, gates, existing structures, driveways, walkways, easements, setback distances, a north arrow, and the drawing scale.

Why Pool Permit Site Plans Matter Before Construction Begins

Swimming pools are considered permanent improvements that change both the functionality and safety of a residential property. Because of this, municipalities review pool projects much more carefully than many other outdoor improvements. A pool permit site plan provides the information needed to determine whether the proposed construction complies with local zoning ordinances, building regulations, and safety codes before work begins.

Pools Are Considered Permanent Structures

Unlike portable outdoor features, an in-ground swimming pool permanently changes your property’s layout. Once installed, it affects drainage patterns, utility access, emergency services, and future property improvements. Building departments therefore require detailed plans that clearly illustrate how the pool fits within the existing property.

The site plan acts as a visual reference, helping permit reviewers understand where the pool will be constructed and how it relates to existing buildings, property boundaries, and surrounding features.

Why Cities Review Pool Projects More Carefully

Every municipality has regulations designed to protect homeowners, neighbors, and the public. Swimming pools introduce unique safety concerns that extend beyond construction itself. Officials review permit drawings to verify that pools maintain required distances from property lines, avoid utility easements, provide sufficient maintenance access, and include approved safety barriers.

Rather than reviewing the pool alone, officials evaluate how the entire project fits within the property’s overall layout. This comprehensive review helps prevent construction conflicts and ensures compliance with local development standards.

Complete Site Plan Supports Faster Permit Approval

A well-prepared pool permit site plan gives reviewers the information they need without requiring additional clarification. Clearly identifying the proposed pool, equipment area, property boundaries, setbacks, and barrier layout allows municipal staff to complete their review more efficiently.

Professional drawings also reduce the likelihood of correction requests caused by missing dimensions, incomplete layouts, or unclear property information. The more complete your submission is, the smoother the permit review process is likely to be.

Understanding the Three Critical Elements of a Pool Permit Site Plan

Although every municipality has its own submission requirements, three components receive the closest attention during permit review: setbacks, equipment pad placement, and pool barrier layouts. These elements directly influence whether your project meets zoning regulations and residential safety standards.

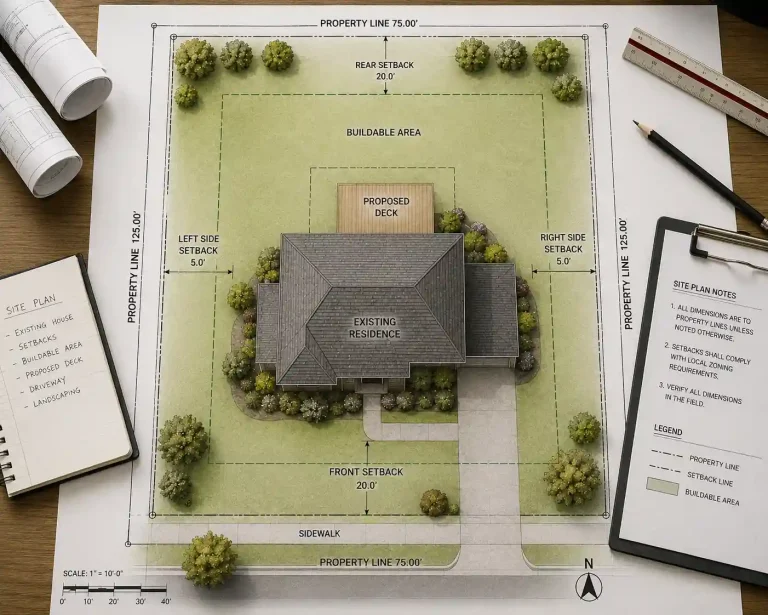

Pool Setback Requirements

One of the first items reviewed on a pool permit site plan is the location of the proposed pool in relation to the property’s legal boundaries. Setbacks establish the minimum distance that the swimming pool must maintain from property lines, existing buildings, easements, utility corridors, and, in some cases, septic systems or drainage features.

These measurements vary between municipalities because zoning regulations differ from one jurisdiction to another. Some communities require larger setbacks for corner lots, while others have separate standards for above-ground and in-ground pools. Regardless of the local rules, accurately identifying setback distances on your site plan allows reviewers to quickly verify compliance before approving the permit.

A properly prepared site plan also demonstrates how the proposed pool integrates with the rest of the property. By showing the relationship between the pool, home, driveway, patio, and other existing improvements, homeowners can reduce the likelihood of revisions resulting from unclear placement or missing dimensions.

Equipment Pad Placement

The swimming pool itself is only one part of the overall project. Every pool relies on supporting mechanical equipment that keeps the water clean, safe, and properly circulated. During permit review, building departments also evaluate where this equipment will be installed.

A complete pool permit site plan should clearly identify the equipment pad, which typically houses the circulation pump, filtration system, pool heater, saltwater generator, automation controls, and other mechanical components. Reviewers use this information to verify that the equipment has adequate working space, complies with local setback requirements, and does not create conflicts with neighboring properties or existing structures.

Proper equipment placement also makes long-term maintenance easier. Positioning pumps and filters in an accessible location allows service technicians to perform routine maintenance without disturbing landscaping or restricting access around the property.

Barrier and Safety Layout

A swimming pool introduces additional safety responsibilities that extend beyond the pool itself. Because of this, barrier layouts receive significant attention during permit review. Most municipalities require a protective enclosure designed to reduce unauthorized access, particularly by young children and pets.

Rather than simply drawing a fence around the pool, the site plan should explain how the barrier functions as part of the overall property layout. This includes identifying fence placement, gate locations, access points, and any existing walls that may serve as part of the required enclosure. Providing this level of detail helps reviewers determine whether the proposed design creates a safe and secure environment.

Properly planned barriers also improve long-term functionality. Homeowners should consider how family members, guests, and maintenance personnel will access the pool area while maintaining the required level of safety. A complete barrier layout demonstrates that these practical considerations have been incorporated into the design before construction begins.

When Is a Pool Permit Required?

Although permit requirements vary by municipality, most jurisdictions require permits for:

New Swimming Pool Installation

Whether you’re installing an in-ground or above-ground pool, most cities require a permit before construction begins. A pool permit site plan helps reviewers evaluate the proposed layout and ensure compliance with local zoning regulations.

Pool Expansions

If you’re enlarging an existing swimming pool or significantly changing its footprint, you’ll usually need an updated permit application along with a revised site plan.

Spa or Hot Tub Installation

Many municipalities require permits for permanently installed spas and hot tubs, particularly those connected to electrical or plumbing systems.

Pool Equipment Upgrades

Some jurisdictions require permit approval when relocating or adding major pool equipment. This may include pumps, filters, heaters, and equipment pads, depending on the scope of the project and local building regulations.

Depending on local requirements, these improvements may also require an updated pool permit site plan to show the location of the equipment and demonstrate compliance with applicable permit requirements.

How Building Officials Review Your Site Plan

Submitting a pool permit site plan is only the first step in the approval process. Once received, municipal reviewers examine several components to determine whether the proposed project satisfies local zoning and safety requirements.

Understanding what reviewers look for allows homeowners of residential sites to prepare more complete drawings and minimize requests for revisions.

Property Boundaries

Permit reviewers first verify that property lines are clearly identified and accurately labeled. These boundaries establish the legal limits of the lot and provide the reference point for evaluating setback compliance. If property dimensions are unclear or inconsistent, reviewers may request additional information before continuing the review.

Accurate property boundaries also help prevent future disputes by confirming that the proposed swimming pool remains entirely within the owner’s property.

Existing Improvements

Building officials also review the existing conditions of the property to understand how the proposed pool integrates with surrounding improvements. The site plan should illustrate major features such as the residence, garage, driveway, patio, deck, walkways, sheds, and other permanent structures.

Providing a complete picture of the property allows reviewers to evaluate circulation, access, and spacing between existing improvements and the proposed pool.

Proposed Pool Layout

One of the primary objectives of the permit review is confirming that the pool has been positioned appropriately within the available space. The site plan should clearly distinguish the proposed construction from existing structures while showing pool dimensions, orientation, and its relationship to surrounding features.

Well-organized drawings make it easier for reviewers to understand the project and reduce the likelihood of clarification requests.

Utilities and Easements

Many residential lots contain utility or drainage easements that limit where permanent structures may be constructed. Building officials review these areas carefully to ensure that the proposed pool does not interfere with underground utilities or future maintenance access.

Whenever easement information is available, including it on the pool permit site plan helps avoid unnecessary revisions during permit review.

Drawing Scale and Orientation

A professional site plan should include a consistent drawing scale, north arrow, property address, and other identifying information. These elements allow reviewers to interpret the drawing accurately and compare it with property records during the approval process.

Clear organization often improves the efficiency of the review process because officials can quickly locate the information they need.

Can Homeowners Draw Their Own Pool Permit Site Plan?

Many municipalities allow homeowners to prepare their own site plans, particularly for straightforward residential projects. However, preparing a permit-ready drawing involves much more than sketching the location of a swimming pool.

When a Simple Drawing May Be Accepted

Some local building departments accept basic site plans for smaller projects if they clearly illustrate property boundaries, existing structures, and the proposed pool location. Requirements vary considerably between jurisdictions, so homeowners should always verify local submission standards before preparing their drawings.

When Professional Drawings Are Recommended

Projects involving complex lot layouts, limited property space, multiple structures, or detailed zoning requirements generally benefit from professionally prepared site plans. Accurate drawings reduce the likelihood of revisions by presenting property information in a clear and organized format.

Professional drafting services also help homeowners save time by ensuring that required details such as setbacks, equipment locations, and barrier layouts are properly identified before submission.

Common Reasons Pool Permit Applications Get Returned

Even well-designed swimming pool projects can experience delays if the submitted documentation is incomplete. In many cases, permit applications are returned not because the project is unacceptable, but because important information is missing from the site plan.

Incomplete Setback Information

One of the most common reasons for revisions is the absence of clearly labeled setback measurements. Building officials rely on these dimensions to verify that the proposed pool complies with local zoning regulations. Missing or inconsistent measurements often require applicants to revise and resubmit their drawings.

Mechanical Equipment Is Missing

Homeowners sometimes focus entirely on the pool while overlooking the supporting equipment. Pumps, filters, heaters, and automation systems should all appear on the pool permit site plan when required by the municipality. Omitting these components can delay the review process because officials cannot evaluate equipment placement.

Safety Barrier Details Are Unclear

Pool barriers play a major role in residential safety, so reviewers expect drawings to clearly identify fence locations, gate positions, and any other protective features required by local regulations. Incomplete barrier information frequently results in correction requests before approval can be granted.

Existing Structures Are Not Shown

Permit reviewers evaluate how the proposed pool interacts with the entire property. If the drawing omits the house, garage, patio, driveway, or other existing improvements, officials may not have enough information to determine whether the project complies with applicable requirements.

Inconsistent Measurements

Dimensions should remain consistent throughout the drawing. Differences between labeled measurements, property records, or other submitted documents often lead reviewers to request corrections before continuing the approval process.

Planning Your Pool Project Before Applying for a Permit

Successful permit applications begin long before the paperwork is submitted. Careful planning allows homeowners to identify potential issues early and prepare a pool permit site plan that reflects both the property’s existing conditions and local permit requirements.

Start With Reliable Property Information

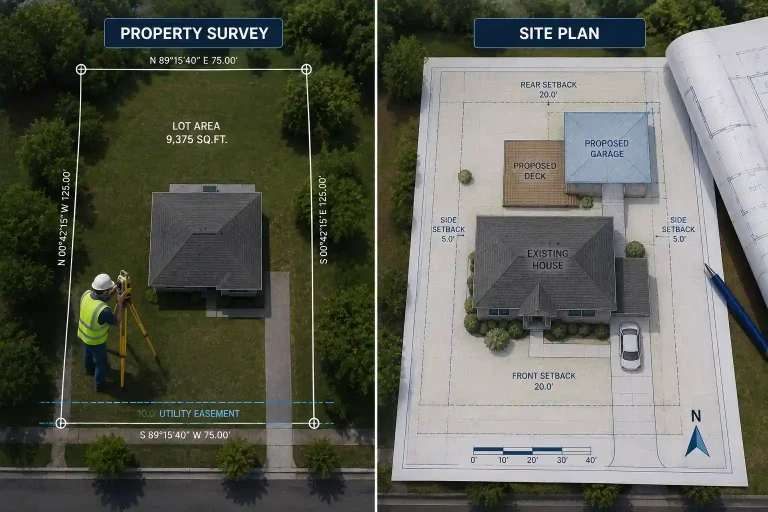

Gathering accurate property records is one of the first steps in preparing permit drawings. Existing surveys, parcel information, and previous site plans even without survey can all provide valuable reference information during the planning process.

Select the Best Pool Location

Choosing the right location involves more than finding available backyard space. Homeowners should consider accessibility, existing landscaping, outdoor living areas, sunlight, drainage, and future expansion plans before finalizing the layout.

Plan Beyond the Swimming Pool

A pool project often includes surrounding features such as patios, outdoor kitchens, landscaping, seating areas, and walkways. Considering these improvements during the planning stage helps create a more functional outdoor environment while reducing the need for future modifications.

Review Local Requirements Before Submission

Every municipality establishes its own permit standards. Reviewing local regulations before finalizing the site plan helps homeowners identify setback requirements, safety standards, and documentation requirements that may affect project approval.

What Happens After You Submit Your Site Plan?

Once the permit application is submitted, building officials begin reviewing the proposed project for compliance with applicable regulations. During the initial review, staff evaluate the property’s layout, setback measurements, equipment placement, safety barriers, and supporting documentation.

If additional information is needed, homeowners typically receive correction comments explaining what revisions are required. After these items have been addressed and the drawings satisfy local requirements, the permit can be approved, allowing construction to begin.

Why a Complete Site Plan Saves Time and Money

A carefully prepared pool permit site plan does more than satisfy permit requirements. It helps reduce misunderstandings, minimizes correction requests, and provides contractors with accurate information before construction begins. Clear drawings improve communication between homeowners, designers, contractors, and municipal reviewers, making the entire permitting process more efficient.

Investing time in preparing permit-ready site plan documents often results in fewer project delays, lower administrative costs, and greater confidence throughout construction.

Final Thoughts

Installing a swimming pool is a major investment, and obtaining the proper permits is an important step toward a successful project. A professionally prepared pool permit site plan gives building officials the information they need to verify setbacks, equipment placement, safety barriers, and compliance with local zoning regulations.

By understanding your city’s permit requirements and submitting a complete, accurate site plan, you can reduce the risk of permit delays, avoid costly revisions, and begin construction with greater confidence. Whether you’re installing a new backyard pool, upgrading an existing one, or adding new equipment, careful planning makes the approval process much smoother.
